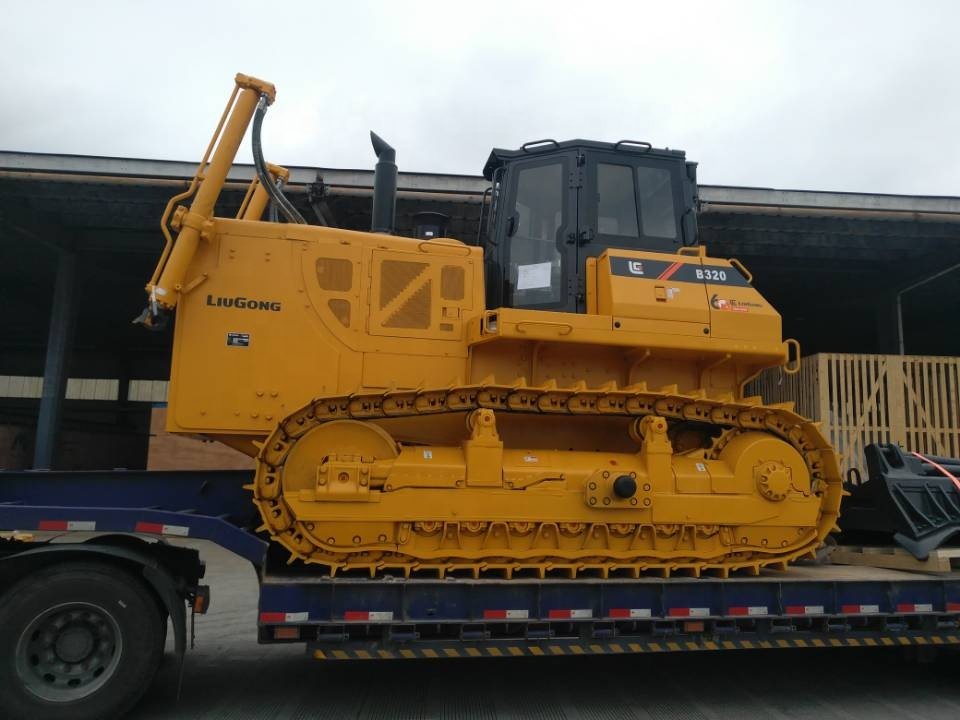

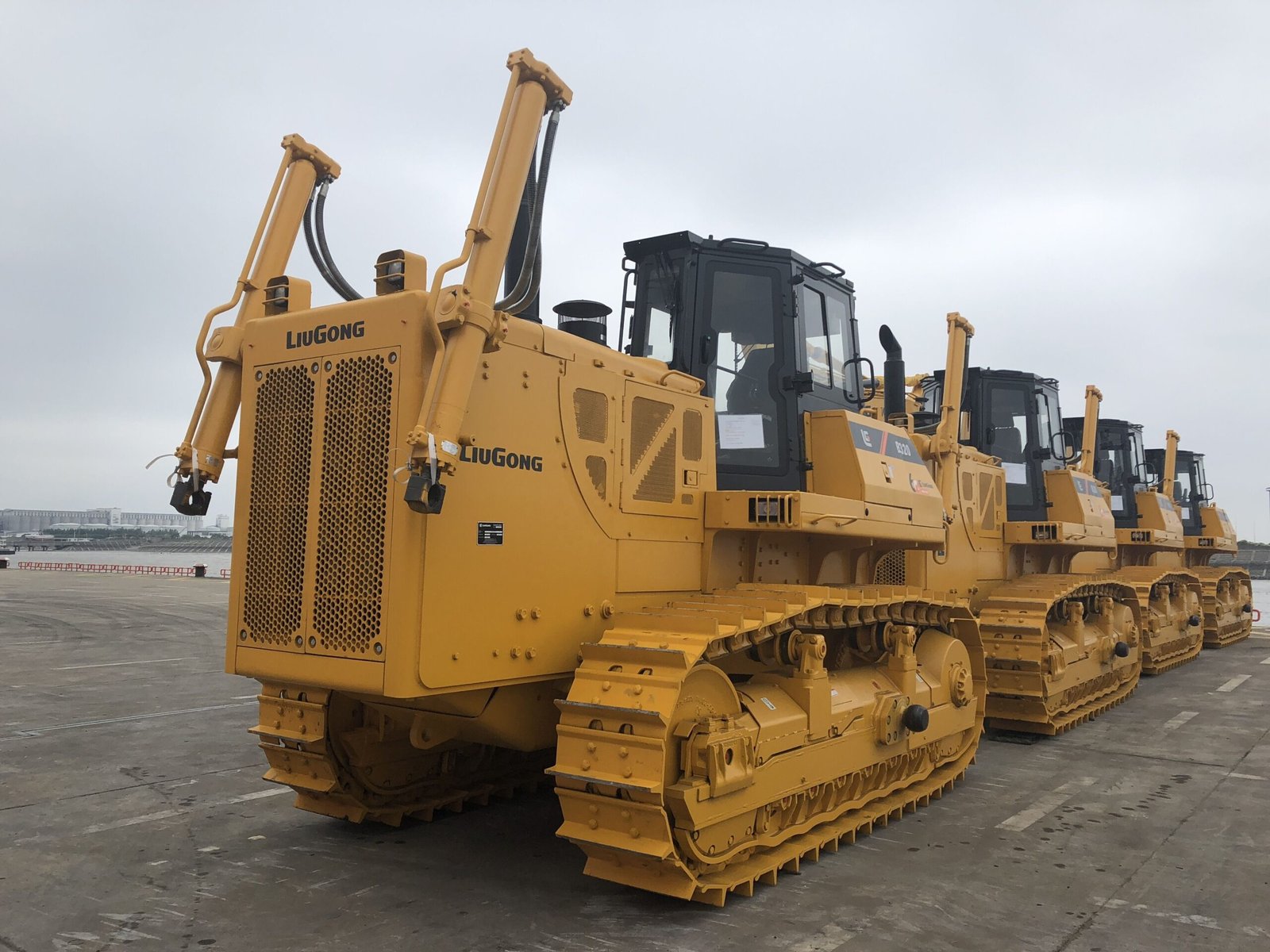

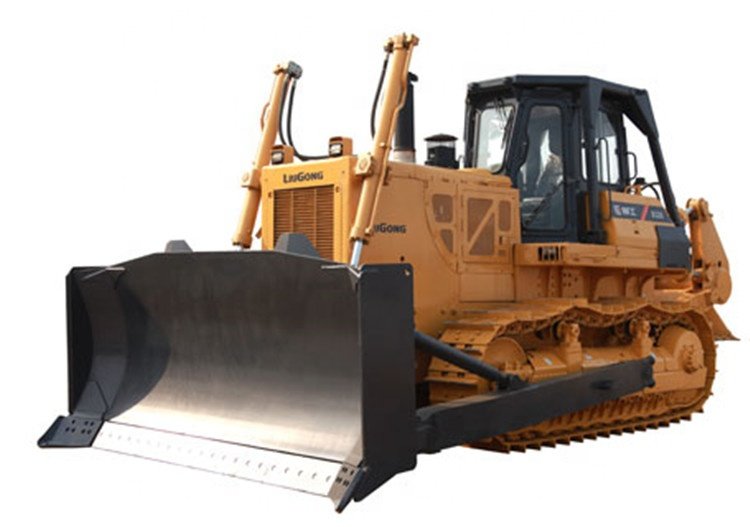

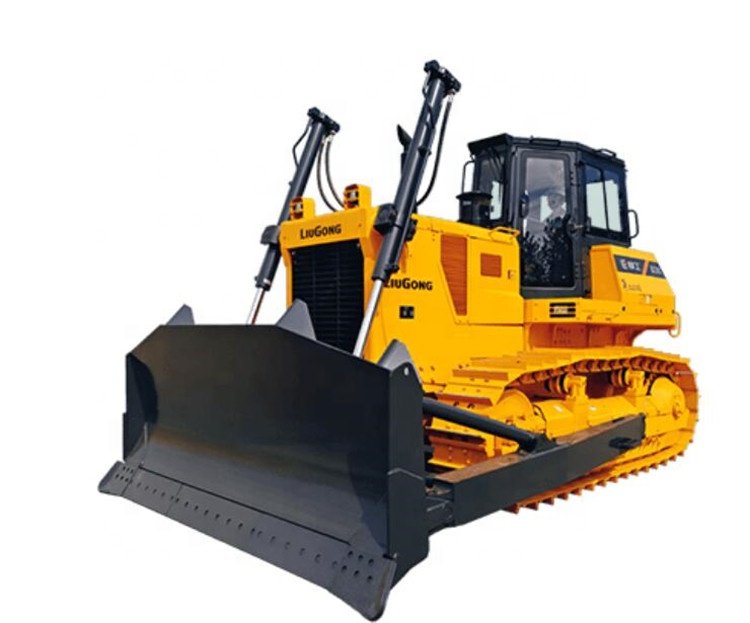

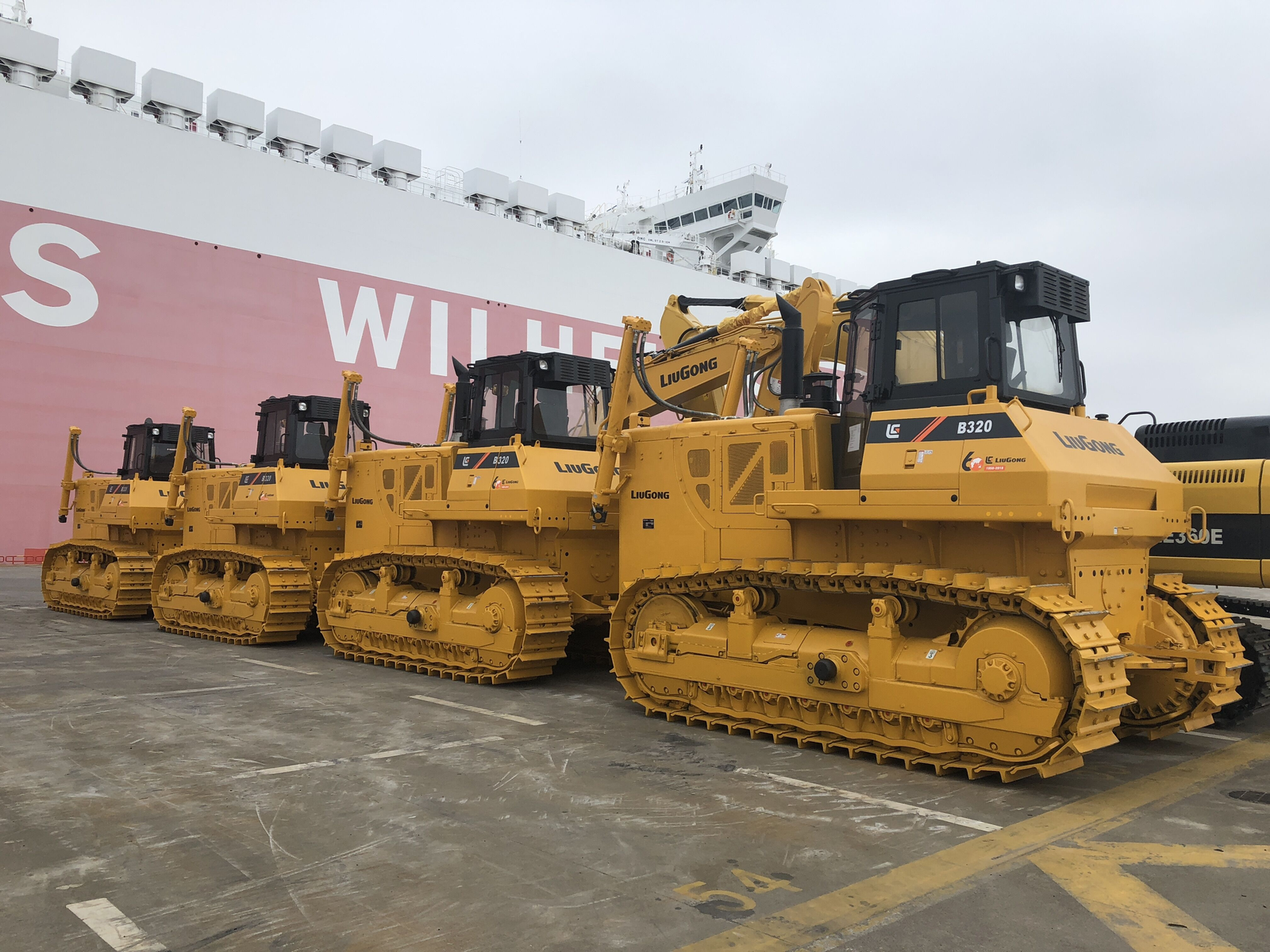

Dozer Bulldozer clgb230 Liugong 220hp Crawler Bulldozer

ENGINE
NUMBER OF CYLINDERS	8
ENGINE MAKE	2236
ENGINE MODEL	3408ETA
GROSS POWER	305.8 KW
POWER MEASURED @	1900 RPM
DISPLACEMENT	18 L
OPERATIONAL
OPERATING WEIGHT	49567 KG
FUEL CAPACITY	817.7 L
ENGINE OIL CAPACITY	45.5 L
HYDRAULIC FLUID CAPACITY	72 L
POWERTRAIN FLUID CAPACITY	166.6 L
FINAL DRIVES FLUID CAPACITY	19 L
OPERATING VOLTAGE	24 V
TRANSMISSION
TRANSMISSION TYPE	POWERSHIFT
NUMBER OF FORWARD GEARS	3
NUMBER OF REVERSE GEARS	3
MAX SPEED – FORWARD	12 KM/H
MAX SPEED – REVERSE	14.7 KM/H
UNDERCARRIAGE
GROUND PRESSURE	110.9 KPA
GROUND CONTACT AREA	4.3 M2
STANDARD SHOE SIZE	610 MM
NUMBER OF TRACK ROLLERS PER SIDE	8
TRACK GAUGE	2250 MM
STANDARD BLADE
WIDTH	4650 MM
HEIGHT	1934 MM
CAPACITY	16.4 M3
CUTTING DEPTH	606 MM
DIMENSIONS
LENGTH W/O BLADE	5180 MM
LENGTH W/ BLADE	7180 MM
WIDTH OVER TRACKS	2930 MM
HEIGHT TO TOP OF CAB	3820 MM
LENGTH OF TRACK ON GROUND	3470 MM
GROUND CLEARANCE	591 MM
